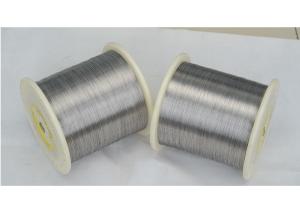

Incoloy 800 Wires/Wire Rod / Strip / Wire (UNS N08800, 1.4876, Alloy 800)
Incoloy 800 is a nickel-iron-chromium alloy with good strength and excellent resistance to oxidation and carburization in high-temperature atmospheres.
A high chromium content gives Incoloy 800 good resistance to oxidation. It also resists many aqueous media and is relatively free from stress-corrosion cracking. Incoloy 800 has excellent resistance to nitric acid at concentrations up to approximately 70% and at temperatures up to the boiling point. It also has good resistance to organic acids, such as formic, acetic, and propionic. It resists a variety of oxidizing and nonoxidizing salts, but not halide salts.
Typical applications are heat treating equipment, petrochemical pyrolysis tubing and piping systems, sheathing for electrical heating elements, food processing equipment.
Chemical Composition
| Grade | Ni% | Cr% | Fe% | C% | Mn% | S% | Si% | Cu% | Al% | Ti% |
| Incoloy 800 | 30.0-35.0 | 19.0-23.0 | Min 39.5 | Max 0.10 | Max 1.50 | Max 0.015 | Max 1.0 | Max 0.75 | 0.15-0.60 | 0.15-0.60 |
Specifications
| Grade | UNS | Werkstoff Nr. |
| Incoloy 800 | N08800 | 1.4876 |
Physical Properties
| Grade | Density | Melting Point |
| Incoloy 800 | 8.0 g/cm3 | 1350°C-1400 °C |

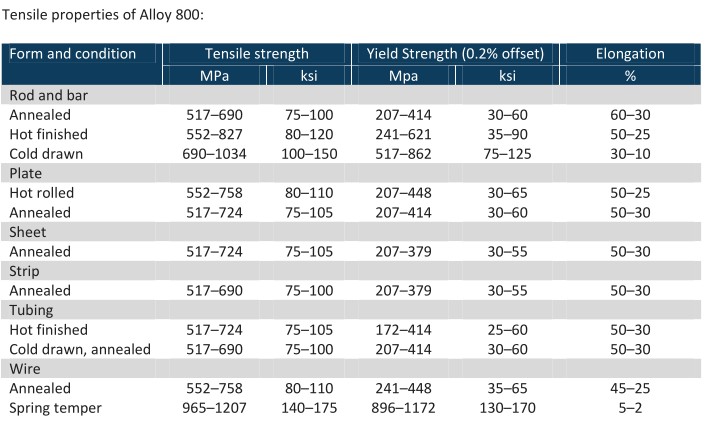

Mechanical Properties
| Grade | Tensile Strength | Yield Strength | Elongation |
| Incoloy 800 | 520 N/mm² | 205 N/mm² | 30% |
Welding of Incoloy 800
Any traditional welding procedures can be used to weld Incoloy 800 to similar alloys or other metals, such as gas tungsten arc welding(GTAW), plasma arc welding (PAW), metal inertia gas welding (MIG) and so on. Before welding, remove scale, grease, mark and imprint.
Recommend filler wire regarding welding Incoloy 800: ERNiCrMo-3
Size Range
Incoloy 800 wire, bar, rod, strip, forging, plate, sheet, tube, fastener and other standard forms are available.
